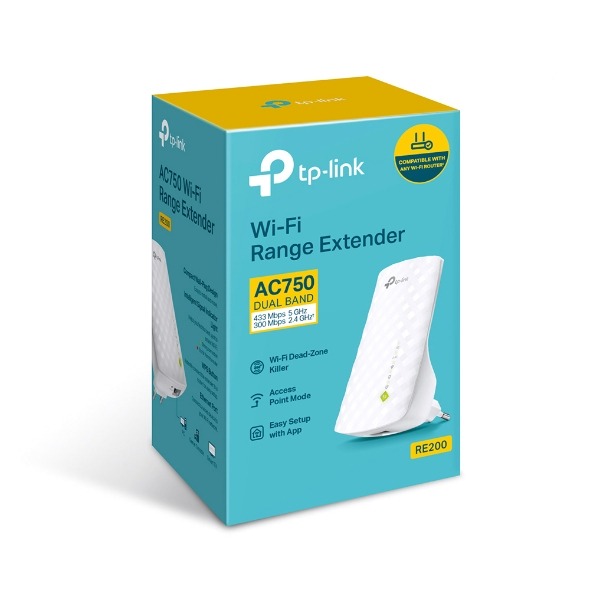

TP-Link RE200 AC750 Wi-Fi Range Extender – V5 HARDWARE FEATURES Plug Type EU, UK, US, AU Interface 1× 10/100Mbps Ethernet Port (RJ45) Button • WPS Button • Reset Button Input Power 100-240V~50/60Hz Max. Power Consumption About 6.5W Dimensions ( W x D x H ) 4.3 × 2.6 × 3.0 in (110.0 × 65.8 × 75.2 mm) Antenna 3 Internal Antennas WIRELESS FEATURES Wireless Standards • IEEE 802.11a/n/ac 5GHz • IEEE 802.11b/g/n 2.4GHz Frequency 2.4GHz & 5GHz Signal Rate • 300Mbps at 2.4GHz • 433Mbps at 5GHz Working Modes Range Extender/Access Point Reception Sensitivity 5 GHz: 390M: -60dBm 29.3M: -83dBm 180M: -64dBm 13.5M: -87dBm 78M: -68dBm 6.5M: -90dBm 54M: -75dBm 6M：-90dBm2.4 GHz: 270M: -70dBm 130M: -70dBm 108M: -73dBm 54M: -75dBm 11M: -86dBm 6M: -92dBm 1M: -94dBm Wireless Functions • Enable/Disable Wireless Radio • DFS (the latest firmware and hardware version is required) • Access Control • LED Control • Power Schedule • Wi-Fi Coverage Wireless Security • 64/128/152-bit WEP • WPA-PSK / WPA2-PSK • WPA3 Transmission Power < 20 dBm (EIRP) Mesh Technology EasyMesh OTHERS Certification CE, FCC, RoHS Package Content • AC750 Wi-Fi Range Extender RE200 • Quick Installation Guide System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. Environment • Operating Temperature: 0°C~40°C (32°F~104°F) • Storage Temperature: -40°C~70°C (-40°F~158°F) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing For additional version information, please go to the support page. †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition. ◇TP-Link EasyMesh-Compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. §Smart Roaming is designed for devices that support the 802.11k/v standard. *The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated. Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. For router backup, order mini ups from here Please join UNISHOP customer community
