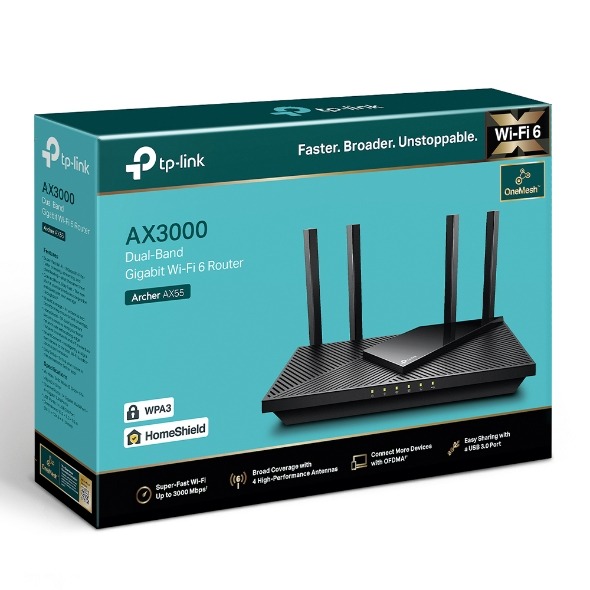

Archer AX55 AX3000 Dual Band Gigabit Wi-Fi 6 Router-V2 WIRELESS Standards and Protocols Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) WiFi Range 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage WiFi Capacity High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 4 Streams Connect your devices to more bandwidth Working Modes Router Mode Access Point Mode SECURITY Network Security SPI Firewall Access Control IP & MAC Binding Application Layer GatewayHomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network VPN Server • OpenVPN Server • PPTP VPN Server • L2TP VPN Server VPN Client • Open VPN Client • PPTP VPN Client • L2TP VPN Client WiFi Encryption WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) HARDWARE Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN Ports USB Support 1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS , FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server Buttons Wi-Fi/WPS Button Power On/Off Button Reset Button Power 12 V ⎓ 1.5 A SOFTWARE Protocols IPv4 IPv6 Service Kits HomeShield Learn More> Parental Controls HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service QoS by Device Cloud Service Auto Firmware Upgrade FOTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Virtual Servers Port Forwarding Port Triggering DMZ UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link NO-IP DynDNS Management Features Tether App Webpage Check Web Emulator> OTHER System Requirements Internet Explorer 11 , Firefox 12.0 , Chrome 20.0 , Safari 4.0 , or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) Certifications FCC, CE, RoHS Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing TEST DATA WiFi Transmission Power CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz) WiFi Reception Sensitivity 5GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm 2.4GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm PHYSICAL Dimensions (W×D×H) 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm) Package Content Wi-Fi Router Archer AX55 Power Adapter RJ45 Ethernet Cable Quick Installation Guide For additional version information, please go to the support page. †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. ‡Use of 802.11ax (Wi-Fi 6) and its features including OFDMA, HE160, and TWT requires clients to also support corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions. Actual power reduction by Target Wake Time may vary as a result of network conditions, client limitations, and environmental factors. §The 802.11ax white paper defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer as enabling at least one mode of operation capable of supporting improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario. ☆Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. □Smart Roaming is designed for devices that support the 802.11k/v standard. △HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit https://www.tp-link.com/homeshield for more information *Use of WPA3 requires clients to support WPA3. **This router may not support all the mandatory features as ratified in IEEE 802.11ax specification. ***Further software upgrade for feature availability may be required. For router backup, order mini ups from here Please join UNISHOP customer community
