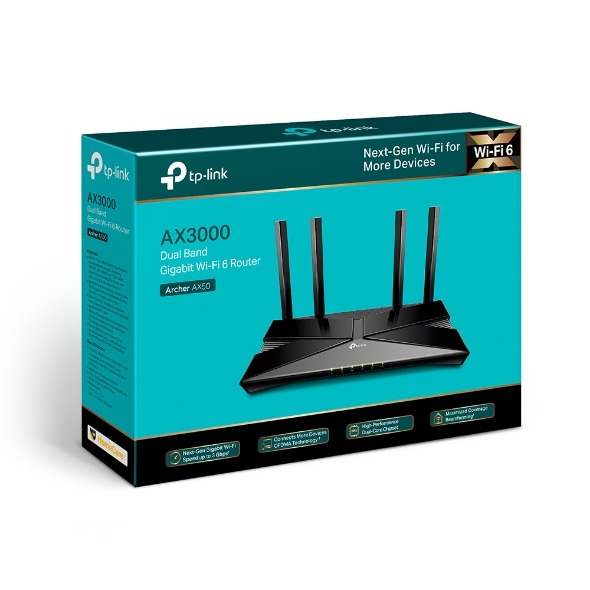

Archer AX50 AX3000 Dual Band Gigabit Wi-Fi 6 Router WIRELESS Standards and Protocols Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) WiFi Range 3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage WiFi Capacity High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 4 Streams Connect your devices to more bandwidth Working Modes Router Mode Access Point Mode SECURITY Network Security SPI Firewall Access Control IP & MAC Binding Application Layer GatewayHomeCare™ Antivirus Malicious Site Checker Port Intrusion Prevention Infected Device Isolation Notification and Log Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network VPN Server OpenVPN PPTP WiFi Encryption WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) HARDWARE Processor Dual-Core CPU Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN PortsStatic Link Aggregation (LAG) available with 2× LAN ports USB Support 1× USB 3.0 Port Supported Partition Formats: NTFS, exFAT, HFS , FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server Buttons Wi-Fi/WPS Button Power On/Off Button LED On/Off Button Reset Button Power 12 V ⎓ 2 A SOFTWARE Protocols IPv4 IPv6 Service Kits HomeCare™ Parental Controls HomeCare™ Parental Controls Custom Profiles Content Filtering App Block URL Filtering Time Limit Time Schedule (Bedtime) Log Insight WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service QoS by Device HomeCare™ QoS QoS by Application Cloud Service Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Virtual Servers Port Forwarding Port Triggering DMZ UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link NO-IP DynDNS Management Features Tether App Webpage Check Web Emulator> OTHER System Requirements Internet Explorer 11 , Firefox 12.0 , Chrome 20.0 , Safari 4.0 , or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) Certifications FCC, CE, RoHS Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing TEST DATA WiFi Transmission Power CE: <20dBm(2.4GHz) <23dBm(5.15GHz~5.35GHz) <30dBm(5.47GHz~5.725GHz) FCC: <30dBm(2.4GHz & 5.15GHz~5.825GHz) WiFi Reception Sensitivity 5 GHz: 11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS11:-55dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm 11ax HE160_MCS0:-85dBm, 11ax HE160_MCS11:-55dBm 2.4 GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-79dBm 11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm 11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm PHYSICAL Dimensions (W×D×H) 10.2 × 5.3 × 1.5 in (260.2 x 135.0 x 38.6 mm) Package Content Wi-Fi Router Archer AX50 Power Adapter RJ45 Ethernet Cable Quick Installation Guide For additional version information, please go to the support page. †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and the maximum number of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and number of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume, and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition. ‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, and 1024-QAM require clients to also support the corresponding features. §HE160 requires client devices that support 160 MHz bandwidth on Wi-Fi. △802.11ax 2×2 160 MHz enables 2402 Mbps maximum theoretical data rates, 3X faster than standard 802.11ac 2×2 80 MHz (867 Mbps) and nearly 6x faster than baseline 1x1ac (433 Mbps) Wi-Fi as documented in IEEE 802.11 wireless standard specifications, and require the use of similarly configured 802.11ax wireless network routers. *“Up to 75% lower latency” is based on Iab simulation data of 802.11ax with and without OFDMA using 9 clients. Average latency without OFDM is 36ms, with OFDMA average latency is reduced to 7.6ms. Latency improvement requires that the AP and all clients support OFDMA. **This amendment defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control layer (MAC) that enable at least one mode of operation capable of supporting at least four times improvement in the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario, while maintaining or improving the power efficiency per station. ****Saving clients’ battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors. *****This router may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11ax specification. Further software upgrades for feature availability may be required. For router backup, order mini ups from here Please join UNISHOP customer community
