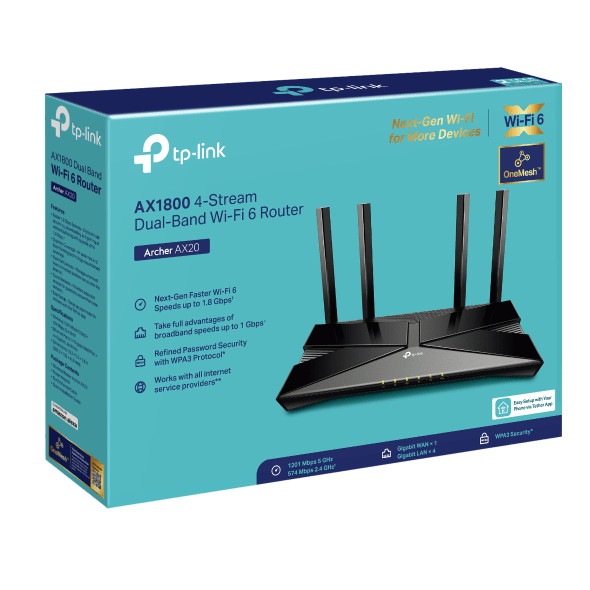

Archer AX20 AX1800 Dual-Band Wi-Fi 6 Router WIRELESS Standards and Protocols Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) WiFi Range 2-3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity High Dual-Band Allocate devices to different bands for optimal performance Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth Working Modes Router Mode Access Point Mode SECURITY Network Security SPI Firewall Access Control IP & MAC Binding Application Layer Gateway Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network VPN Server OpenVPN PPTP WiFi Encryption WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) HARDWARE Ethernet Ports 1× Gigabit WAN Port 4× Gigabit LAN Ports Buttons WPS/Wi-Fi Button Power On/Off Button Reset Button Power 12 V ⎓ 1 A SOFTWARE Protocols IPv4 IPv6 OneMesh™ OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> Parental Controls URL Filtering Time Controls WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Quality of Service QoS by Device Cloud Service Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding Port Triggering DMZ UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link NO-IP DynDNS Management Features Tether App Webpage Check Web Emulator> OTHER System Requirements Internet Explorer 11 , Firefox 12.0 , Chrome 20.0 , Safari 4.0 , or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) Certifications FCC, CE, RoHS Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing TEST DATA WiFi Transmission Power CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) WiFi Reception Sensitivity EU Version 5G 11a 6Mbps: -96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm 11ac VHT80_MCS0: -89dbm 11ac VHT80_MCS9:-62dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm 11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G 11g 6Mbps:-96dbm 11g 54Mbps:-75dbm 11n HT20_MCS0:-95dbm 11n HT20_MCS7:-75dbm 11n HT40_MCS0:-92dbm 11n HT40_MCS7: -72dbm 11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbm US Version 5G 11a 6Mbps: -96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm 11ac VHT80_MCS0: -89dbm 11ac VHT40_MCS9:-62dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm 11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm 2.4G 11g 6Mbps:-96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbm PHYSICAL Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) Package Content Wi-Fi Router Archer AX23 Power Adapter RJ45 Ethernet Cable Quick Installation Guide For additional version information, please go to the support page. †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. ‡Use of 802.11ax (Wi-Fi 6), and features including 1024-QAM requires clients to also support corresponding features. §The 802.11ax white paper defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer as enabling at least one mode of operation capable of supporting the improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario. ☆Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. △Saving clients’ battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors. *Use of WPA3 requires clients to also support WPA3. **A separate modem or gateway may be required. PPPoE, Static IP, and Dynamic IP are supported. PPTP and L2TP may also be supported under certain configurations. �� Follow Us on Facebook Stay connected with our latest updates, deals, and promotions:�� Follow UniShop on Facebook for the latest offers and product insights. For router backup, order mini ups from here Please join UNISHOP customer community
