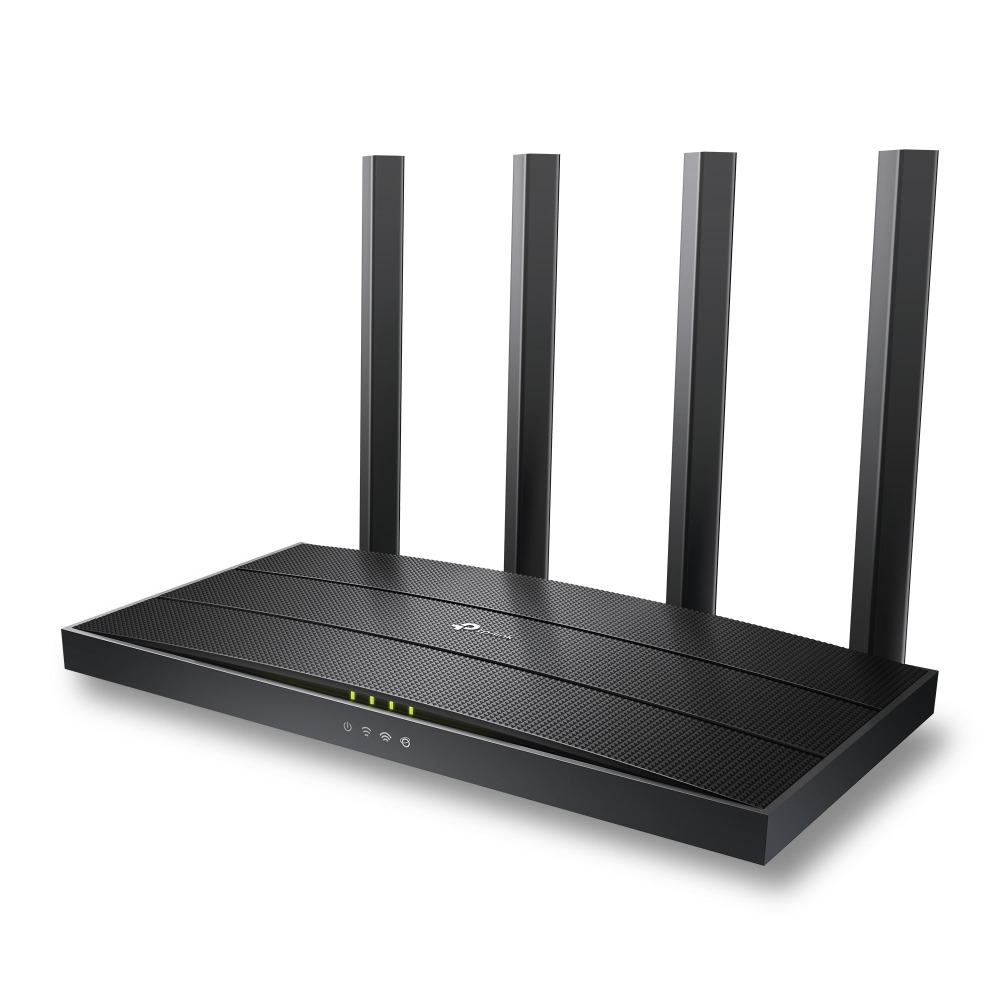

Archer AX12 AX1500 Wi-Fi 6 Router WIRELESS Standards and Protocols Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) WiFi Range 2-3 Bedroom Houses 4× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth Working Modes Router Mode Access Point Mode SECURITY Network Security SPI Firewall Access Control IP & MAC Binding Application Layer Gateway Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network VPN Server OpenVPN PPTP WiFi Encryption WPA2-PSK WPA2-PSK/WPA-PSK WPA3-Personal WPA3-Personal/WPA2-PSK WPA2-Enterprise WPA/WPA2-Enterprise encryptions HARDWARE Ethernet Ports 1× Gigabit WAN Port 3× Gigabit LAN Ports Buttons WPS/Reset Button Power 12 V ⎓ 1 A SOFTWARE Protocols IPv4 IPv6 Parental Controls URL Filtering Time Controls WAN Types Dynamic IP Static IP PPPoE/PPTP(Dual Access)/L2TP(Dual Access) Quality of Service QoS by Device Cloud Service Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding Port Triggering DMZ UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link NO-IP DynDNS Management Features Tether App Webpage Check Web Emulator> OTHER System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Cable or DSL Modem Subscription with an internet service provider (for internet access) Certifications FCC, CE, RoHS Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing TEST DATA WiFi Transmission Power CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) WiFi Reception Sensitivity 5 GHz: 11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm 2.4 GHz: 11g 6Mbps: -96 54Mbps: -80 HT20-MCS0: -97 MCS7: -78 HT40-MCS0: -94 MCS7: -75 PHYSICAL Dimensions (W×D×H) 8.5 × 4.6 ×1.3 in (215 × 117 × 32 mm) Package Content Wireless Router Archer AX12 Power Adapter RJ45 Ethernet Cable Quick Installation Guide For additional version information, please go to the support page. 1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications are based upon test results under normal usage conditions. Actual wireless transmission rate and wireless coverage are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition. 2. Use of MU-MIMO, DL/UL OFDMA and 1024QAM requires clients to also support those functions. 3. Saving clients’ battery power requires clients to also support the 802.11ax Wi-Fi standard. Actual power reduction may vary as a result of network conditions, client limitations, and environmental factors. 4. Latency improvement requires that the AP and all clients support OFDMA. 5. Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. For router backup, order mini ups from here Please join UNISHOP customer community
