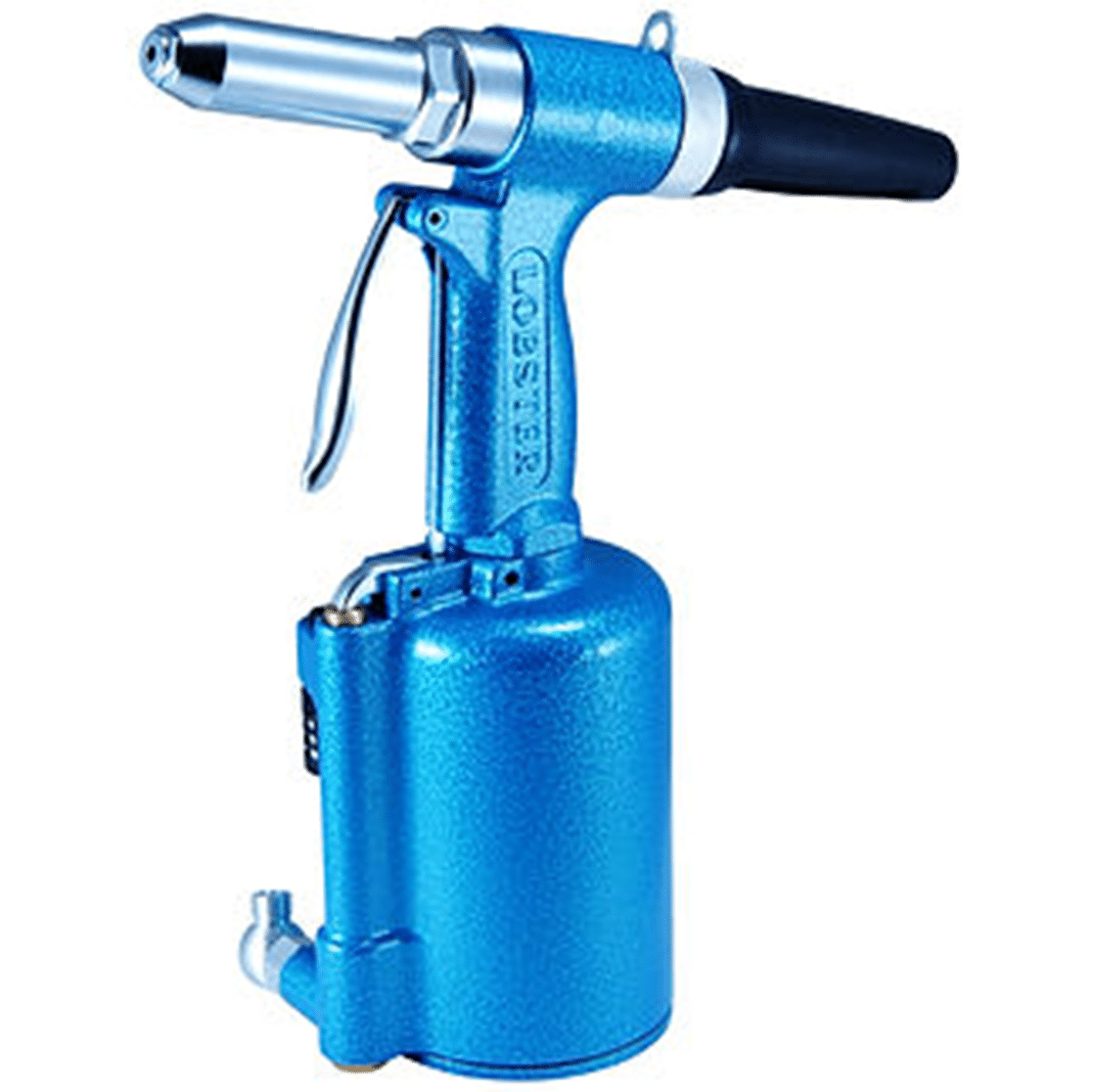

Description The newly-evolved X series developed from the globally-recognised AR-011 Series. With its toughness of AR-011 Series. Longer stroke from 14mm to 16mm (AR011MX). Applicable to Stainless Steel Rivet owing to Ultra Jaws and “Softset” technology (Shockless). Easy jaw maintenance by one-touch detachable jaws case. With built-in silencer. User-friendliness with rotary joint and soft safety cover. Customizable: optional parts available (Short Trigger and Straight Joint). Short Trigger Straight Joint Model No. (Product) Weight Size 1 Size 2 Size 3 Size 4 Size 5 Size 6 Use Range Usage Jaws Traction Power AR011MX 1.5kg 251mm 271mm 80mm 64.5mm φ23 16mm φ2.4, 3.2, 4.0, 4.8mm M Ultra 9 AR011HX 2.1kg 272mm 312mm 90mm 76.5mm φ25 16.5mm φ2.4, 3.2, 4.0, 4.8, 6.4mm M Ultra ・H Ultra 14
