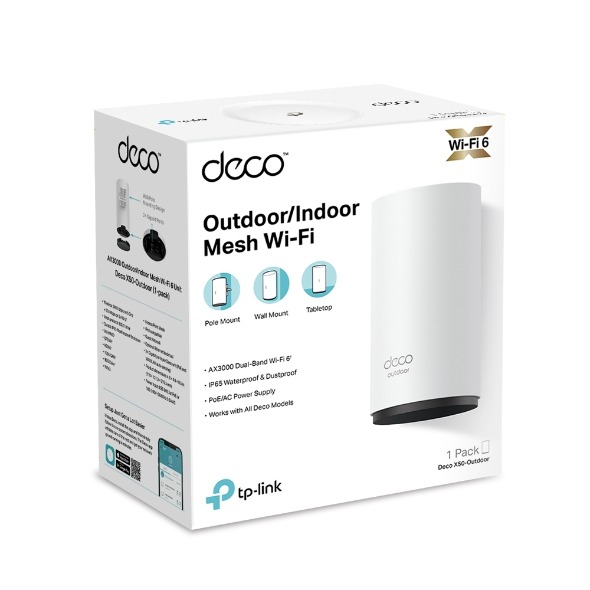

TP-Link Deco X50-Outdoor AX3000 Dual-Band Mesh Router (1 Pack) WIRELESS Standards and Protocols Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds AX3000 5 GHz: 2402 Mbps (802.11ax) 2.4 GHz: 574Mbps (802.11ax) WiFi Range 1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas WiFi Capacity High Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices Working Modes Router, Access Point SECURITY Network Security SPI Firewall Access ControlHomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network Wi-Fi Security WPA/WPA2/WPA3 HARDWARE Ethernet Ports 2 × Gigabit ports per Deco unit (PoE and WAN/LAN auto-sensing) Power Power Input IEEE 802.3at PoE or 100-240V~50/60Hz 0.5A AC SOFTWARE Protocols IPv4 IPv6 Service Kit HomeShield Learn More> Parental Controls HomeShield Parental Controls Youtube Restriction SafeSearch Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports WAN Types Dynamic IP Static IP PPPoE L2TP PPTP Quality of Service HomeShield QoS QoS by Device Cloud Service OTA Firmware Upgrade TP-Link ID DDNS NAT Forwarding Port Forwarding UPnP IPTV IGMP Proxy IGMP Snooping Bridge Tag VLAN DHCP Address Reservation DHCP Client List Server DDNS TP-Link Management Features Deco App OTHER Network Services Enabled by Default Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 22 Protocol: TCP • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP TEST DATA WiFi Transmission Power FCC: <30 dBm(2.4 GHz), <30 dBm(5 GHz) CE: <20 dBm (2.4 GHz), <30 dBm (5 GHz) PHYSICAL Dimensions (W×D×H) 4.3 × 4.8 × 8.5 in (110 × 121.3 × 215.5 mm) OTHERS Certification CE, FCC, RoHS Package Content 1 × Deco X50-Outdoor unit 1 × AC Power Cord 1 × RJ45 Ethernet cable Wall/Pole Mounting Kit(Pole Mounting Strap, Plastic Wall Anchors, Self-tapping Screws ) Installation Guide Environment Operating Temperature: -30°C~60°C (-22°F~140°F) Storage Temperature: -40°C~70°C (-40 °F~158 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH For additional version information, please go to the support page. †Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. ‡Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client’s device. △Uses of WiFi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, and BSS Color require clients to also support the corresponding features. §Gigabit internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time. *Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product. **HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information. Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. This Deco may not support all the mandatory features as ratified in IEEE 802.11ax specification. Further software upgrades for feature availability may be required. Google and Google Home are trademarks of Google LLC. For router backup, order mini ups from here Please join UNISHOP customer community
